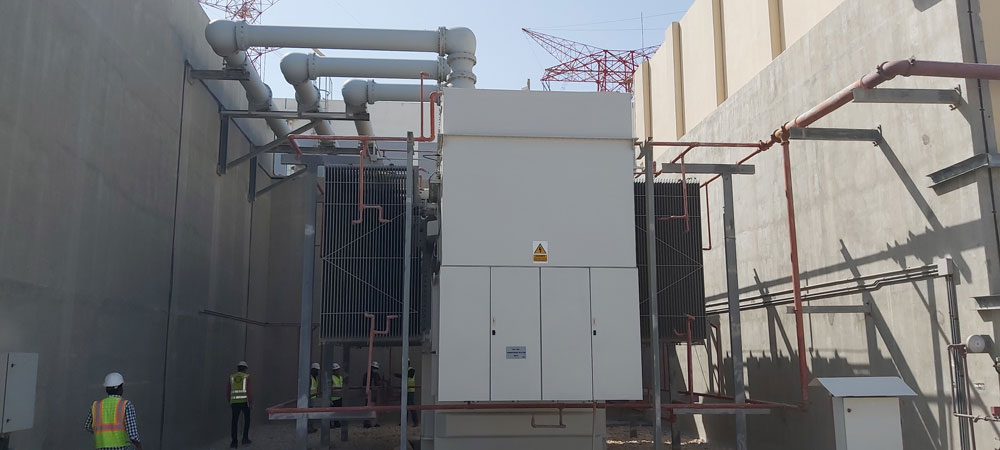

The image shows a 132/33kV Power Transformer installed at the client’s substation facility. The transformer is housed between high concrete firewalls designed for arc flash protection and acoustic insulation. The unit includes:

• High-voltage and low-voltage bushings

• Cooling radiators with oil piping

• On-load tap changer (OLTC) compartment

• Conservator tank for oil level management

• Pressure relief and Buchholz relay protection

• Cable and ducting for HV and LV connections

• Fire protection and earthing system integrated

• SCADA and monitoring interface ready

The transformer is an essential part of the substation, responsible for voltage transformation from transmission (132kV) to distribution level (33kV), enabling power to be safely and efficiently delivered to industrial and commercial loads.

The project was executed in compliance with IEC standards, ensuring all structural, electrical, and safety parameters were met. Final testing and commissioning were carried out to confirm operational readiness.
